Shenzhen Prototyping & AI Hardware Manufacturing

The Shenzhen / Greater Bay Area hardware ecosystem

Within a 10-kilometer radius, the GBA cluster integrates component distributors, PCB fabs, assembly houses, mold shops, design studios, test labs and logistics. Nowhere else can a PCB rev be ordered at 8 PM and arrive assembled the next night.

• Huaqiangbei (Futian) — the component & quick-turn nerve center. Source any sensor, connector, camera module (IMX415, OV5640), mic array or edge-AI SoC board off the shelf, and get simple boards from Gerber to assembled in 24–48 hours.

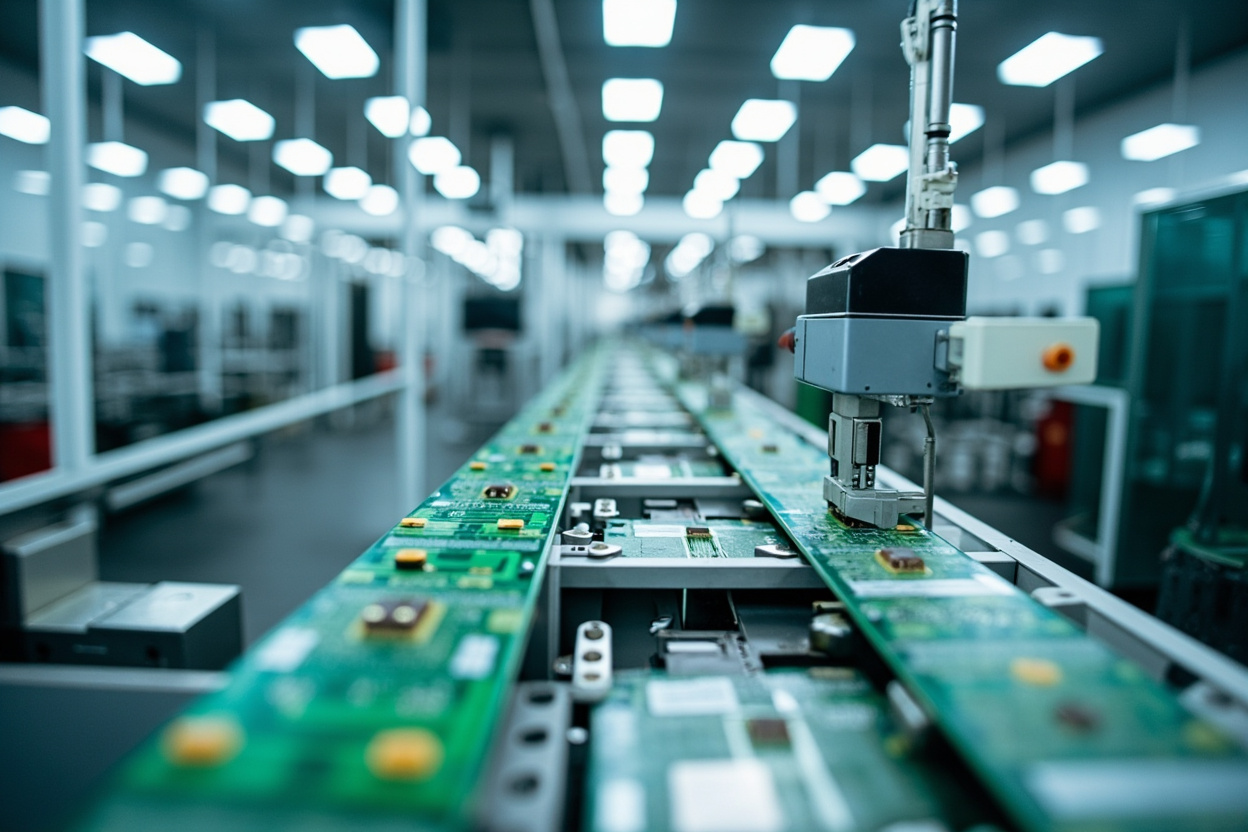

• Bao’an (Xixiang, Fuyong, Shajing) — the factory floor: PCB fabrication, SMT assembly, injection molding and full box-build, 24-hour shifts, 5–10 day lead times for medium-complexity PCBA after DFM sign-off. MOQs from 500–1,000.
• Nanshan — design & development: design houses and incubators that take a sketch through full EVT with RF tuning and AI deployment. Full EVT-ready design typically $20k–$80k.
• Longhua / Longgang — high-volume final assembly, packaging and FBA fulfillment.

The hardware pipeline: gates, timelines, costs

Every device moves through the same gates. A medium-complexity AI device (smart camera with local AI) typically reaches mass production in 6–9 months at $80k–$250k total NRE.

AI hardware specifics

The 2026 edge-AI menu, all stockable in Huaqiangbei: Rockchip RK3588S (6 TOPS) for NVR/edge boxes; SigmaStar SSC338Q (1 TOPS, <$8) ubiquitous in AI cameras; Allwinner V853 (NPU+ISP, <$6); Kneron KL720 (1.4 TOPS) for audio+vision; Hailo-8L/15 modules. Custom camera modules run $2k–$8k NRE (MOQ 500–1k); mic arrays $3k–$10k; custom LiPo packs $1k–$4k and need UN38.3 / IEC62133 for shipping. For large volumes (>10k), order chips direct from the maker with 8–16 week lead times.

PCB / PCBA prototyping — turnaround & pitfalls

2-layer boards: 24–48 hours Gerber-to-assembled in Huaqiangbei; 4-layer 3–5 days; 6–8-layer 5–8 days. A 5–20-board proto run costs $150–$600 (2-layer) to $500–$2,000 (4-layer with fine-pitch BGAs). The pitfalls that kill schedules: footprint mismatches, missing decoupling caps on AI SoCs, moisture-sensitive devices popcorning during reflow, no test points for production validation, and no bootloader recovery path. A local partner runs the DRC/DFM check with the assembly house before fabrication.

OEM vs ODM, and who owns the tooling

Use OEM when you own a validated design and need a contract manufacturer to build to spec (MSA + SOW + Quality Agreement). Use ODM to launch fast on a proven white-label platform that already has FCC/CE — you pay $5k–$25k NRE for housing, logo and firmware skin, and the ODM holds most IP. A production injection mold for a consumer enclosure runs $8k–$25k; state explicitly in the contract that all tooling you pay for is your exclusive property, stamp it with a serial number, photograph it, and never pay more than 50% up front.

IP protection for hardware

The standard is a bilingual NNN (Non-disclosure, Non-use, Non-circumvention) agreement under Chinese governing law with a liquidated-damages clause — a strong deterrent when combined with ongoing business. Layer on a utility-model patent (6–12 months, $2k–$5k), a split BOM (NPU from one source, firmware from another, assembly at a third), and secure boot / eFuse so a cloned board can’t run your software.

What a China-based technical partner delivers

Not a middleman — your eyes, hands and ears in the ecosystem. DFM/DFX at the source (catching the BGA annular-ring violation before fabrication), real factory audits (ESD compliance, reflow profiles, genuine vs remarked chips), real-time component sourcing when a part goes out of stock, IP compartmentalization, last-mile assembly and test, and certification acceleration at the local pre-scan lab. In practice this compresses time-to-prototype from months to days and cuts iteration cost 40–60% — routinely dropping board respins from three to one.
